Build Your Rig

The configurator above lets you build an ADDAX Basecamp V3 in 3D — pick a paint color, add the rooftop tent and 270° awning, then layer on the All Terrain, All Season and All Comfort packages and send the build to a dealer for a quote. Every option is listed below. Designed and built in Lindon, Utah.

Paint colors

Mud Red
Forest Green
Desert Tan
Matte Black
White

All Comfort package

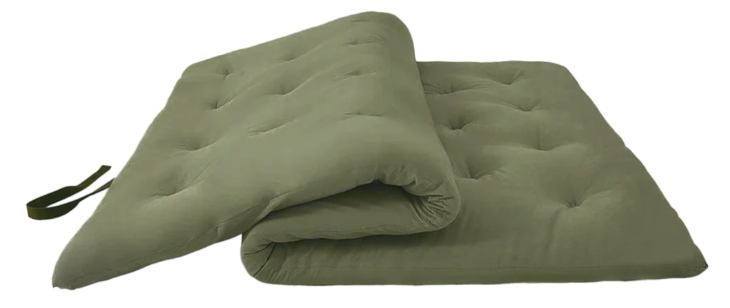

Mattress: Five-Layer Design for comfort and support. Multi-Purpose: Ideal for floor, bed, RV, camping. Foldable, rollable with reinforced straps.

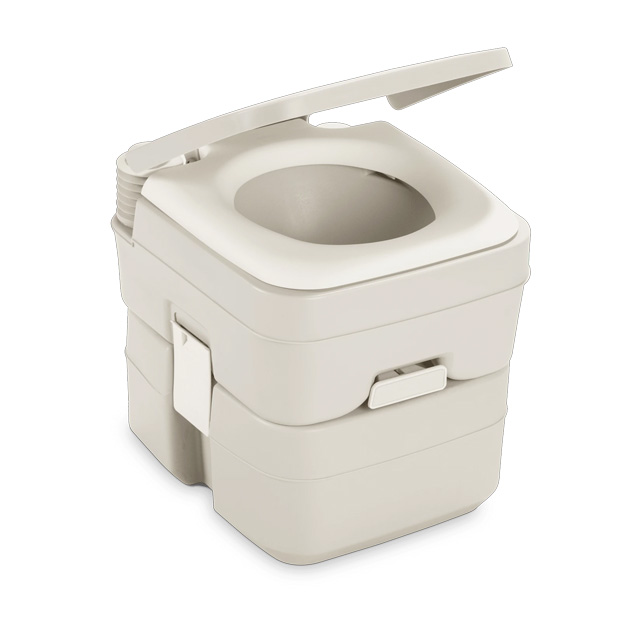

Toilet: Adventure waits for nothing.

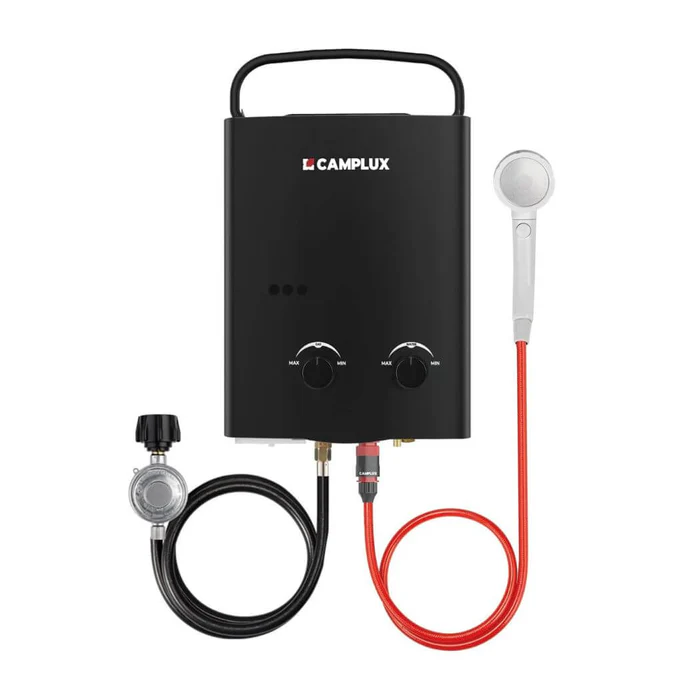

Propane Water Heater: 1.32 GPM on-demand hot water heater. Comes with 5 ft gas regulator, shower hose and US standard garden hoses. Weighs only 14 lbs.
Shower: Connects to your water supply with standard hose attachments.

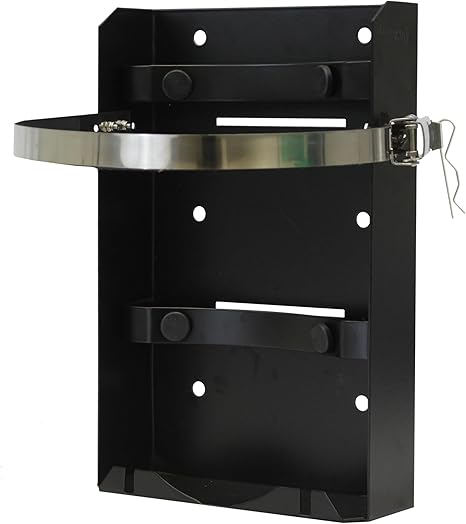

Propane bracket: 10 lb T-Racks Propane Tank Bracket holds your cylinder securely while travelling rough roads.

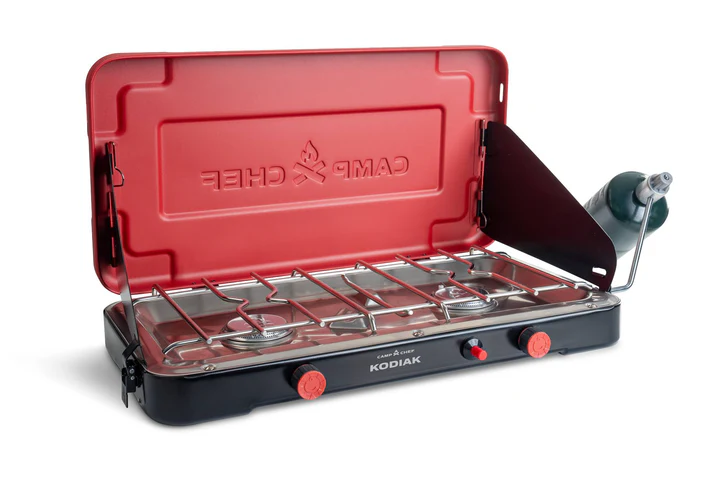

Camp chef: Cooking Area 200 in². Total Output 20,000 BTUs. Weight 11 lbs.

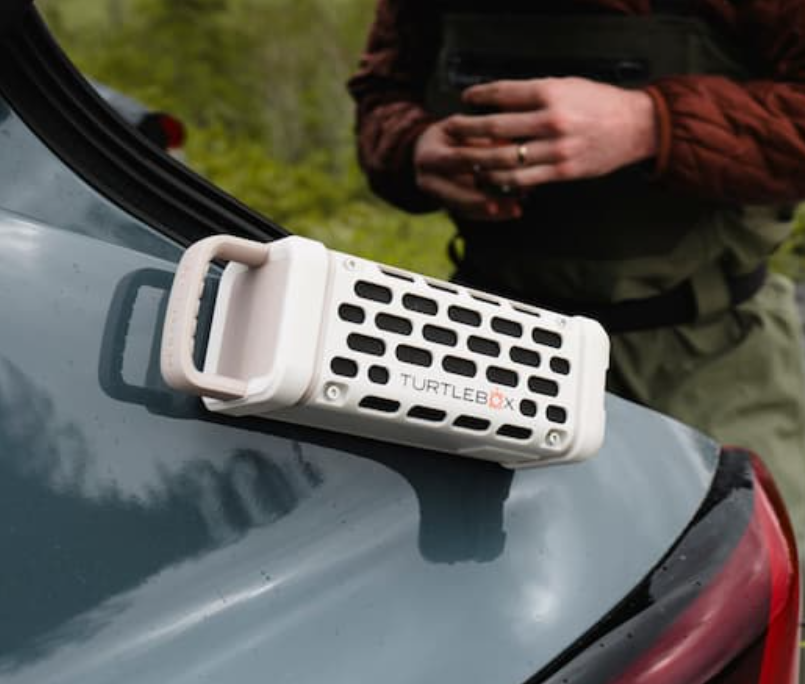

Outdoor speaker: IP-67 waterproof. Drop, crush and dust-proof. Party Mode™ and TWS Mode. 12+ hour battery.

All Terrain package

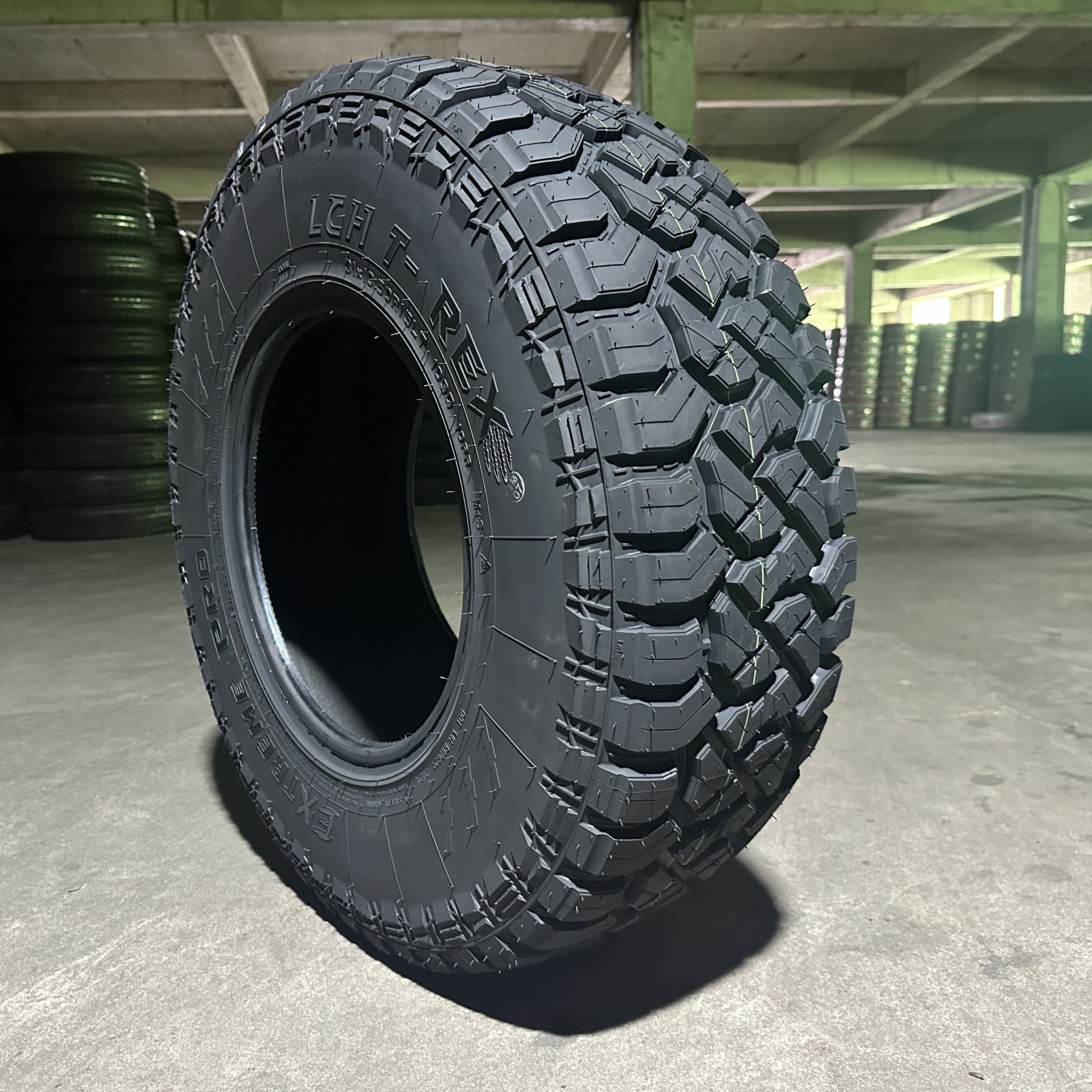

Spare tire: An additional Off-Road Tire.

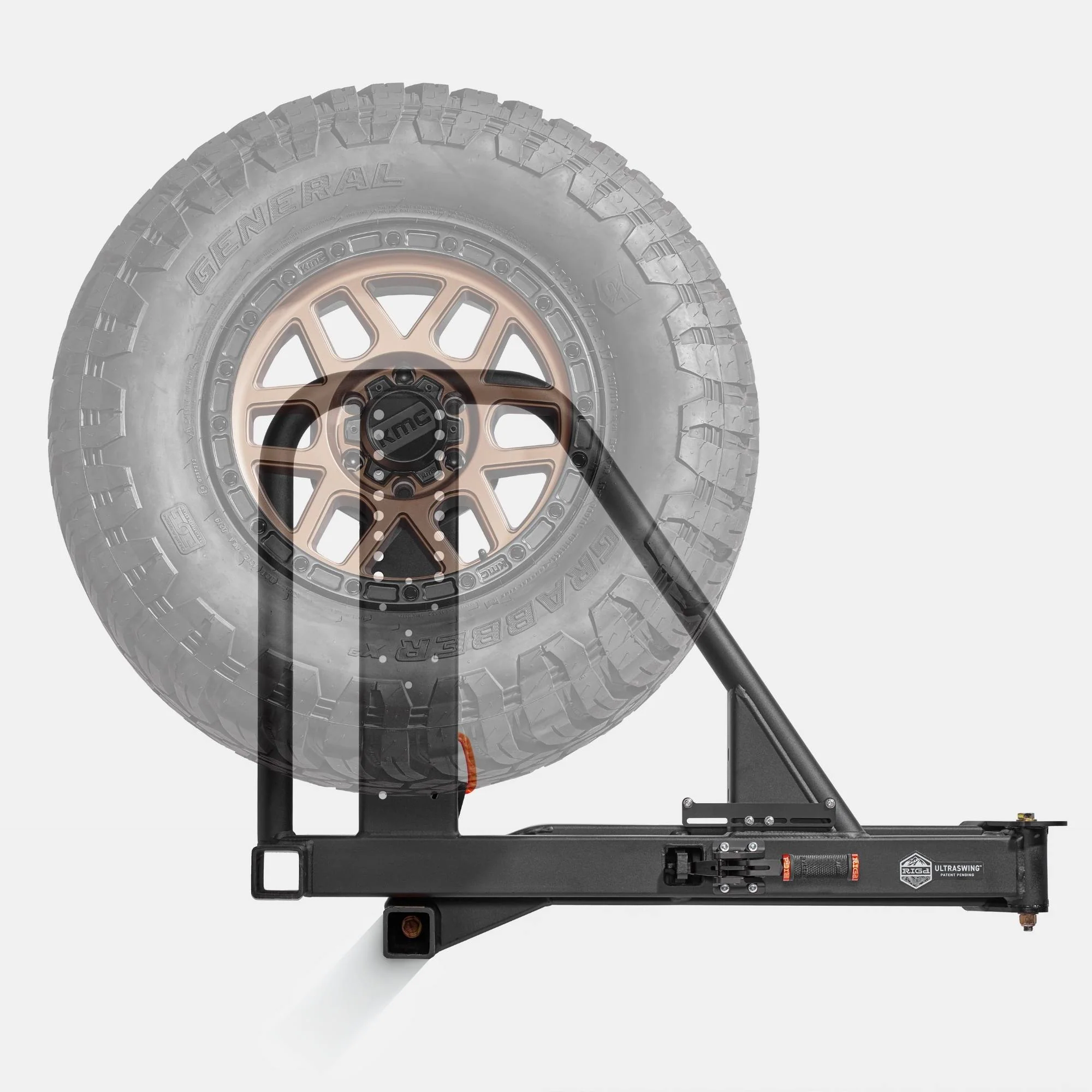

Swing out mount: Supports a combined weight of 275 lbs. Weighs 79 lbs with wheel plate.

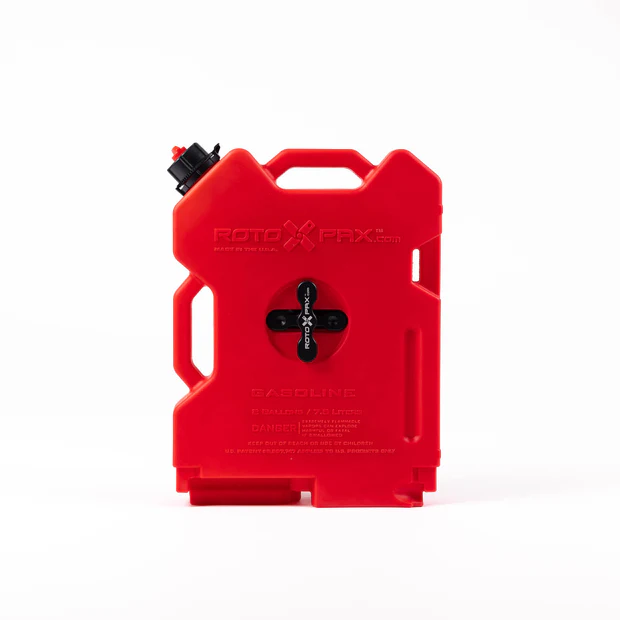

Two Roto-Pax with mounts: Capacity: 2.0 US gallons. Durable roto-molded plastic. Leak-proof, gasket-sealed cap. EPA and CARB compliant.

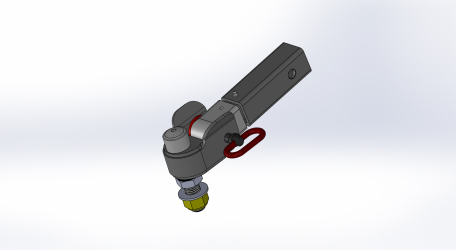

Articulating hitch: Tri-axis design lets the trailer follow any trail.
4 Ratchet Straps: Combined with the ADDAX Trailer MOLLE panels, bring all your critical gear with you.

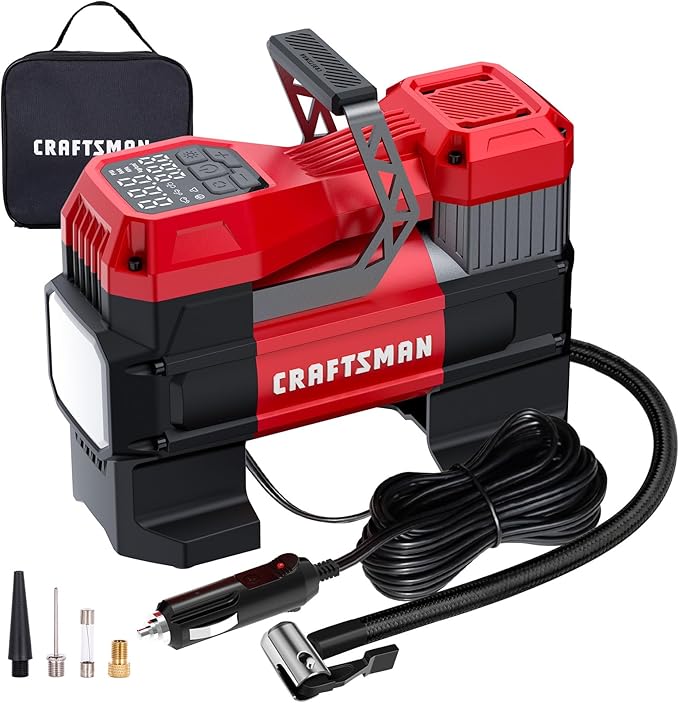

Electric air compressor: Up to 150 PSI. Inflates a 195/65 R15 tire from 30→36 PSI in under a minute. 1.9 lbs.

All Season package

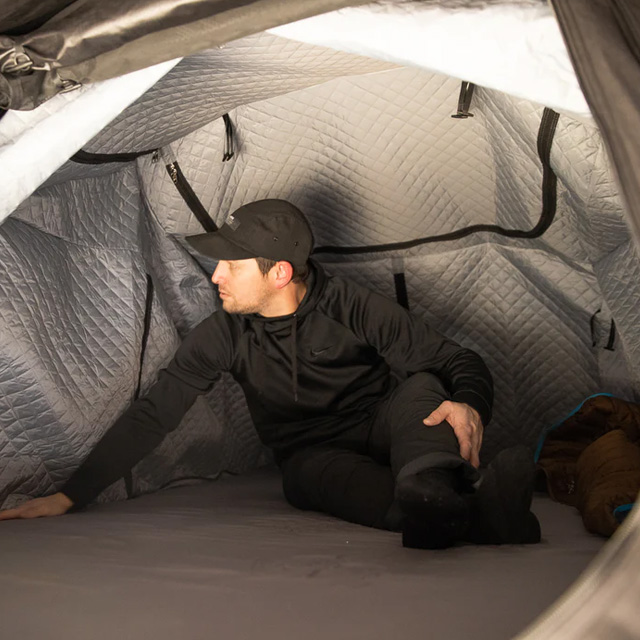

Tent liner: An extra insulation layer for colder camping.

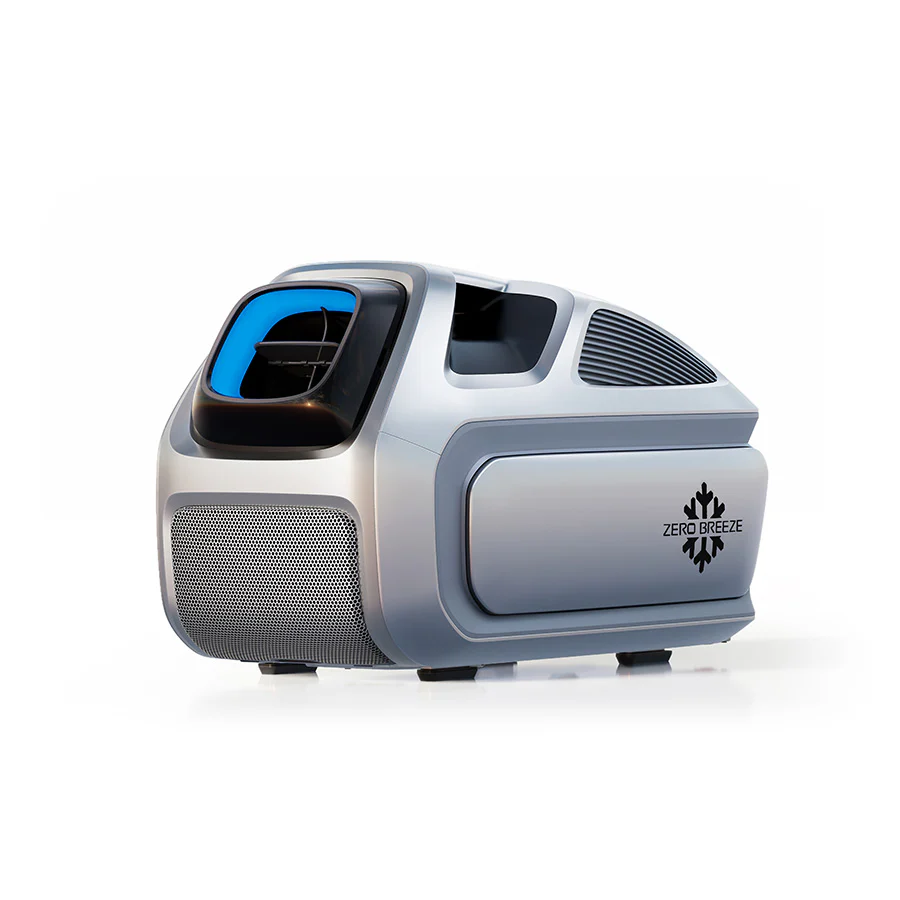

AC/heater: 22 lbs, 5,280 BTU portable AC. Cools 20°F in 5 minutes. Runs on batteries or 500W solar.

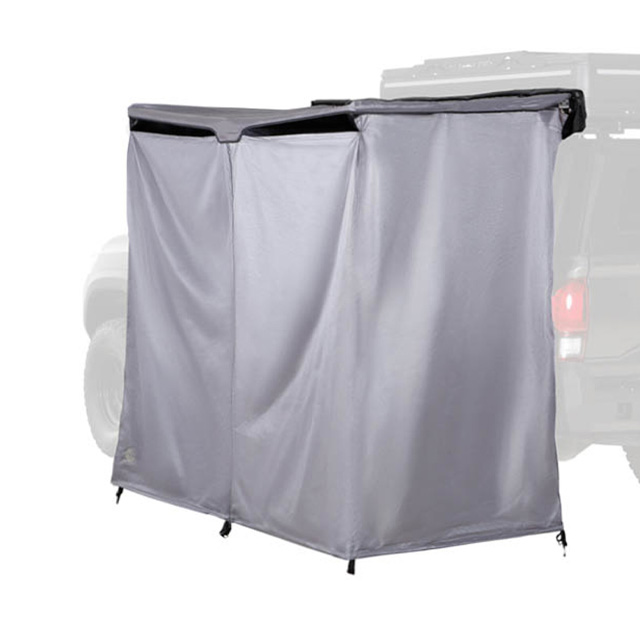

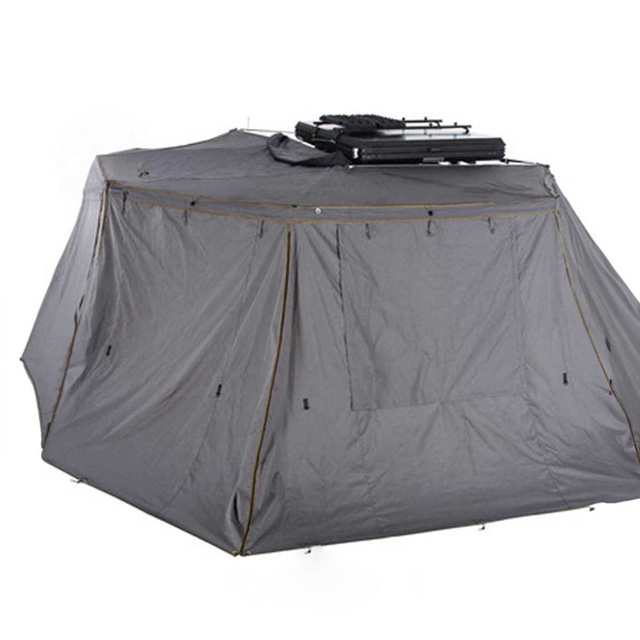

Awning walls: Turn the area under your awning into a secondary tented area.

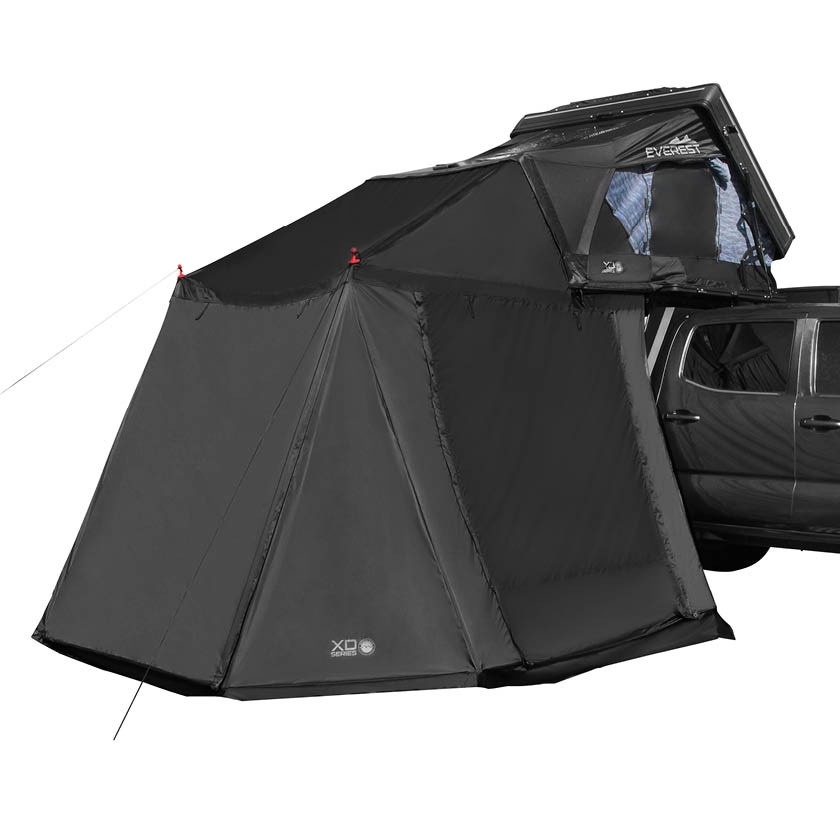

Annex: Attaches to the rooftop tent for a secondary tented entrance area.

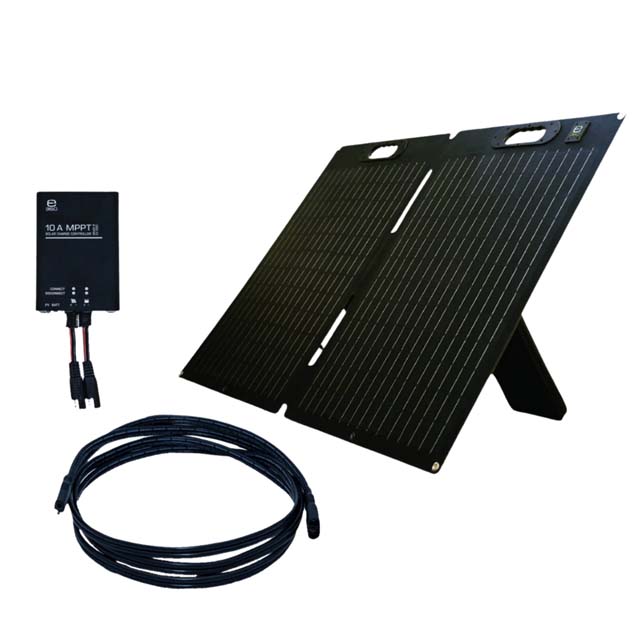

Solar panels: Keep your battery topped off.

How the configurator works

The 3D viewer above is the actual ADDAX Basecamp V3 — a 6 ft x 6 ft off-road overland trailer on a 3/16-inch steel chassis with a 14-gauge steel body, 17 inches of ground clearance and 29-inch all-terrain tires. Rotate it, pick a paint color, then layer on the packages to see how the build changes.

Nothing you select is a commitment. When the build looks right, send it to a dealer and it becomes the starting point of a quote. ADDAX doesn't publish list pricing because it depends on your configuration and your dealer, so the configurator's job is to settle the spec, not the price.

Every trailer starts from the same standard equipment: a pre-installed hard-shell rooftop tent and 270° awning, a 7-foot pull-out galley with a 53 L electric refrigerator, a 22-gallon fresh water tank with an electric pump, and a 100 Ah lithium battery running 220 W of solar input into a 1500 W inverter with four 110 V outlets. The packages below add to that; they don't replace it.

Choosing your build

1. Start with where you campCold, wet or high-altitude camping points at All Season. Remote, rough terrain points at All Terrain. Long stays with family point at All Comfort.
2. Check your tow vehicleThe Basecamp V3 is 1,800 lb dry and about 2,000 lb wet, with a 1,450 lb payload on a 3,500 lb axle. It tows behind most Wranglers, Gladiators, mid-size and full-size trucks and body-on-frame SUVs. You'll need a 7-pin connector and a brake controller for the electromagnetic drum brakes.
3. Pick a colorPaint is the one choice that can't be added later, so it's worth deciding before you submit the build. Everything else is dealer-installable after delivery.
4. Send it to a dealerYour configuration goes to an authorized ADDAX dealer, who confirms availability, prices the build and works through financing. Find your closest dealer.

Basecamp V3 Specs Find a Dealer Request a Quote

Standard on every Basecamp V3

These figures don't change with your configuration. They're the baseline the packages build on, and they're the numbers to bring to a conversation about whether your tow vehicle is up to it.

Dry weight: 1,800 lb
Wet weight: 2,000 lb
Payload capacity: 1,450 lb
Axle rating: 3,500 lb (1,750 lb per side)
Ground clearance: 17 in
Tires: 29 in all-terrain on 15 in rims, 5 x 5 lug
Brakes: Electromagnetic drum on torsion axles
Chassis: 3/16 in steel, 14 gauge steel body
Footprint: 6 ft x 6 ft, 47 in removable tongue
Battery: 100 Ah lithium
Solar input: 220 W max
Inverter: 1500 W (4500 W peak surge)
AC outlets: Four 110 V (2 interior, 2 exterior)
Fresh water: 22 gal with gauge and electric pump
Refrigerator: 53 L sliding electric
Kitchen: 7 ft pull-out galley

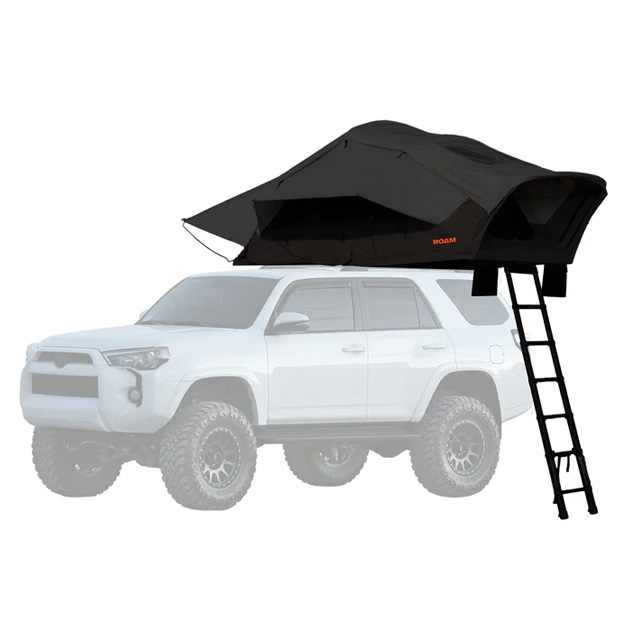

Shelter: Hard-shell rooftop tent + 270° awning
Built in: Lindon, Utah, USA

Configurator FAQs

Does building a configuration place an order?

No. Submitting a build sends your spec to an authorized ADDAX dealer as the starting point for a quote. Nothing is committed until you order through that dealer.

Why isn't there a price in the configurator?

ADDAX sells through dealers, and pricing depends on your build and your dealer. The configurator settles the specification; the dealer settles the price and financing.

Can I add a package after I take delivery?

Yes. All Season, All Terrain and All Comfort are dealer-installable, so you can start with the base Basecamp V3 and add packages later. Paint is the one choice worth making up front.

Can I combine all three packages?

Yes. The packages are independent and stack in any combination.

Will the 3D viewer work on my phone?

The viewer runs in any modern mobile or desktop browser with WebGL. Every option it contains is also listed in text on this page, so you can read the full catalog without loading the 3D model.
